Hongbao
Pharmaceutical applications
Scheme Parameters
| Scheme Components | Technical Parameters |
|---|---|
| Material Box Rack ： |
Cow leg combination, rack height: 4m, one position per grid, double deep Load: Q=30kg (including material box)
|
| Stacker: |
Single-column double-deep stacker, aluminum alloy structure, height: 4m, Q=30kg, Operating speed: 120-30-30m/min SEW reduction motor, LHD fork Siemens PLC series |

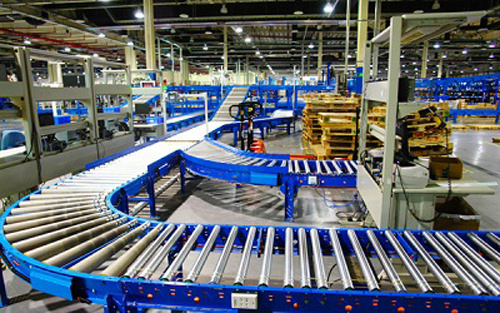

| Conveyor system: | Combination of box conveyors, lifting and transplanting machines, picking stations, etc. |
| MWS/WCS/RF: | Warehouse Management System, Warehouse Control System, Handheld Barcode Scanner System |
| On-site electronic scoreboard: | LCD screen |
| Interface system: | Interface with ERP/MES |
Project Overview
The entire intelligent warehousing and logistics system mainly consists of a stacker system, a conveying system, a picking system, racks, an RF system, a warehouse management system, an electronic scoreboard system, and interfaces.
This project generally achieves the warehousing and out-of-warehouse of semi-finished products; scanning, warehousing, storage, out-of-warehouse, picking and delivery of finished reagents. It realizes material information management and integrates with the intelligent workshop management system and various production lines (units).
Scheme Advantages
Realizes the storage of semi-finished products and finished reagents in low-temperature warehouses, improving low-temperature warehouse automatic control.
Realizes fully automated handling, conveying and warehousing of semi-finished products and finished reagents between low-temperature warehouses and picking positions, greatly reducing labor intensity and avoiding employee work in low-temperature environments.
