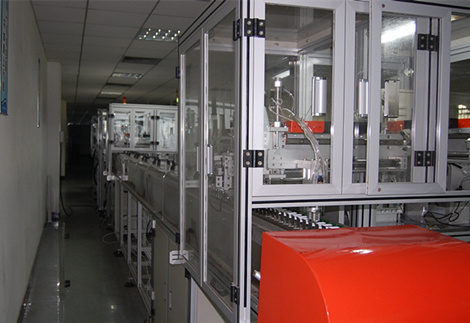

Integrated toothbrush sterilizer and polisher
Function Introduction
After injection molding, the three-coordinate system unloads the material. The brush handle is placed on the brush handle feeding line, waiting for the bristle planting machine to complete the bristle planting. Then it is moved to the chain plate line fixture for bristle quality inspection. NG and good products undergo trimming and polishing to achieve different bristle shapes for subsequent cleaning processes. According to requirements, stamping, hot stamping and batch number stamping are performed at the required positions on the brush handle, and the products are discharged from the unloading line.
Project Advantages
1. Highly integrated production line, integrating brush handle feeding, bristle planting, trimming, polishing, cleaning, and hot stamping into one, improving production efficiency.
2. The brush handle feeding line is equipped with a color sensor to identify the color of the brush handle, allowing for switching between different colors of bristle planting, suitable for multiple brush handle colors.
3. The use of high-precision chain plate lines allows for precise positioning of the toothbrush, which is the core technology of the entire line.
4. The chain plate line's self-adjusting fixture can promptly feedback movement errors during line operation and adjust accordingly, saving manpower. The equipment uses fully automatic signal interaction, requiring no manual intervention.
5. Wide range of product applicability: Brush head width 6-14mm, thickness less than 5mm, brush handle length 180-250mm.
Equipment Parameters
| External Dimensions: | Non-standard |
|---|---|
| Equipment Yield Rate: | Over 98% |
| Equipment Efficiency: | 2 s/pcs |
| OEE: | 95% |
| Equipment Precision: | The fixture line uses a high-precision chain plate line, with a pitch of 120mm, running accuracy of ±0.08mm, and repeat positioning accuracy of ±0.04mm. |
| Application Range: | High-precision chain plate lines are suitable for various fixture precision positioning applications; self-adjusting fixtures can adapt to various products. |
