Stacker - Phantom Series
Stacker - Phantom Series

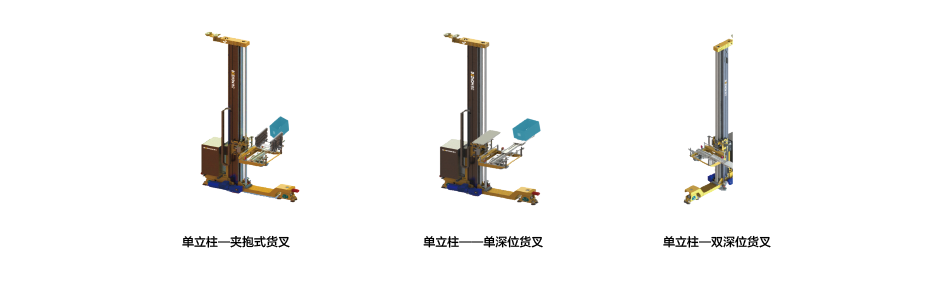

Equipment Image
Equipment Parameters
| Parameters |
Clamp-type Fork |
Single-deep Fork |
Double-deep Fork |
| Rated Load |
0~100kg |
0~100kg |
0~50kg |
| Tray Size |
Standard or Customized |
Standard or Customized |
Standard or Customized |
| Overall Height |
<30m |
<30m |
<30m |
| Travel Speed |
0~300m/min |
0~300m/min |
0~300m/min |
| Travel Positioning Accuracy |
±5mm |
±5mm |
±5mm |
| Lifting Positioning Accuracy |
±3mm |
±3mm |
±3mm |
| Fork Positioning Accuracy |
±2mm |
±2mm |
±2mm |
Product Advantages and Features
▲ Lightweight, high-speed, suitable for high-density bin storage warehouses
▲ Composed of single or double columns, simple and practical operation
▲ High safety and reliability, easy maintenance, complete product series
▲ Suitable for express delivery, light industrial manufacturing, power instrumentation, pharmaceutical delivery and other automated logistics warehousing systems
