Hongbao
Stacker crane - All-around series
Stacker Crane - All-Purpose Series

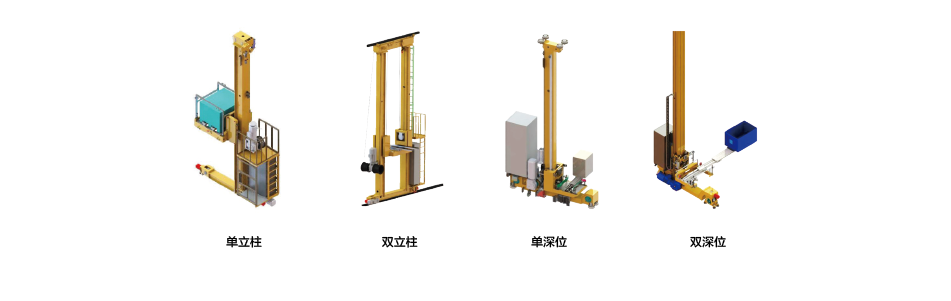

Equipment Image
Equipment Parameters
| Parameters |
Single Column | Double Column | Single Deep Position |
Double Deep Position |
| Rated Load |
0~1500kg |
0~4000kg |
0~4000kg |
0~4000kg |
| Tray Size |
Standard or Customized |
Standard or Customized |
Standard or Customized |
Standard or Customized |
| Overall Height |
<30m |
<45m |
<30m |
<30m |
| Travel Speed |
0~180m/min |
0~180m/min |
0~180m/min |
0~180m/min |
| Travel Positioning Accuracy |
±5mm |
±5mm |
±5mm |
±5mm |
| Lifting Positioning Accuracy |
±3mm |
±3mm |
±3mm |
±3mm |
| Fork Positioning Accuracy |
±2mm |
±2mm |
±2mm |
±2mm |
Product Advantages and Features
▲ Due to its good and stable performance parameters, it is suitable for high-density bin storage warehouses
▲ Consists of single/double columns paired with single/double deep forks; simple and practical to operate
▲ High safety and reliability, easy maintenance, and a complete product series
▲ Suitable for express delivery, light industrial manufacturing, power instrumentation, pharmaceutical delivery, and other automated logistics warehousing systems
