Hongbao
Worm gear steering motor_gearbox assembly equipment
Product Parameters
| Equipment Dimensions: | Non-standard |
| Equipment Compatibility: | Can be used for the assembly of 3 types of products |
| Equipment Efficiency: | 1920pcs/8h |

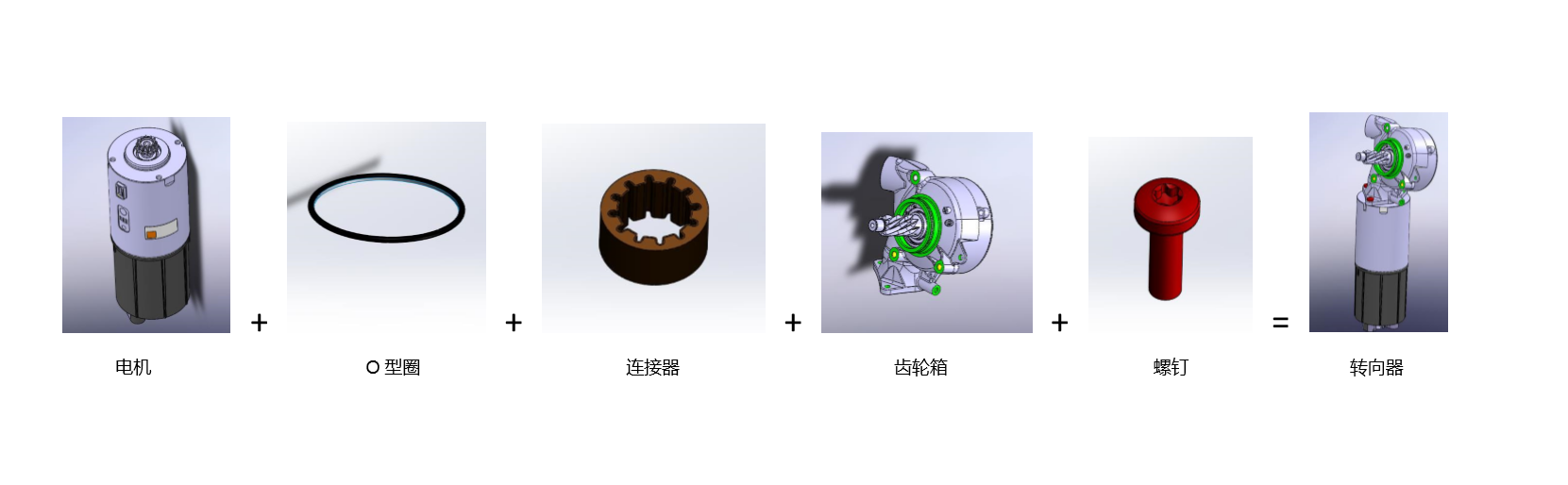

| Main Processes: | The automotive power steering motor and gearbox screw assembly equipment mainly completes the motor and gearbox scanning, motor O-ring and connector assembly and detection, motor oiling, motor and gearbox assembly, and automatic screwing |
| Equipment Maintenance: | Regularly conduct red and green part tests, clean debris from various jigs every day, and check the temperature of the electrical control box and whether the air conditioner is working properly |
| Application Range: | Automotive power steering product assembly |
Product Advantages
| High Efficiency: | The entire assembly process of the motor and gearbox only takes 15 seconds, greatly improving the production efficiency of the product 360° rotary oiling, which can achieve quantitative and uniform oil injection, ensuring product quality The eight workstations on the turntable perform corresponding assembly simultaneously, reducing the waiting time for manual operation of each process, and the assembly efficiency is about 6 times that of manual operation |
| Turntable single-machine equipment design: | Single-machine equipment can be compatible with the assembly of three types of products, and more types of product assembly can be added later according to the process, reducing the cost of one equipment for each product |
| Avoid work-related accidents: | The eight workstations of the equipment are separated by partitions to prevent the operator from being pinched when the equipment is working |
Production Process
