Hongbao
Adhesive tapes, roll-type applications
Scheme Parameters
| Scheme Components | Technical Parameters |
|---|---|
| Tray Rack: | V-shaped plate support beam combination type, rack height: 22m, four positions per grid, single-depth type Load capacity: Q=800kg |
| Stacker Crane: |
Double-column single-depth stacker crane, height 22m, Q=800kg, Operating speed 140-40-40m/min SEW deceleration motor, V-shaped fork LHD Siemens series PLC |
| Conveyor System: | V-type chain conveyor, loop system, rotary table, turning machine, chain plate machine, etc. |
| AGV: | Forklift type, laser navigation, carrying capacity: 800kg |
| MWS/WCS/RF: | Warehouse Management System, Warehouse Control System, Handheld Barcode Scanner System |
| On-site Electronic Display Board: | LCD screen |
| AGV Interface System: | BOZHON WMS and AGV system docking |
| Interface System: | Interface with ERP/MES |
Project Overview

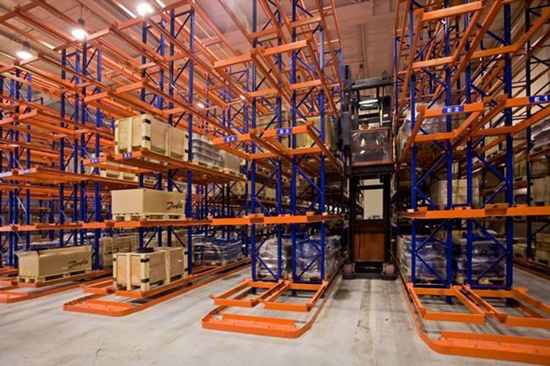

The entire intelligent warehousing and logistics system mainly consists of a stacker crane system, a V-chain plate conveyor system, an RGV loop system, a laser AGV system, racks, an RF system, a warehouse management system, an electronic display board system, and interfaces.
This project comprehensively solves the automated warehousing, storage, outbound material supply, sorting and loading, and information management of raw films and mother rolls. It automates storage and transportation, material dispensing, and accounting. Seamless docking is achieved between AGV handling and the production line.
Scheme Advantages
Breakthrough in flat storage technology for adhesive tape raw films and mother rolls. That is, mother rolls can be stored flat without deformation, not affecting subsequent slitting processes.
Achieve undifferentiated storage of raw films and mother rolls of different sizes and specifications, maximizing warehouse utilization.
Achieve fully automated operations for the handling, conveying, and warehousing of raw films and mother rolls in the workshop, greatly reducing labor intensity.
