Ring shuttle car
Ring Shuttle Car

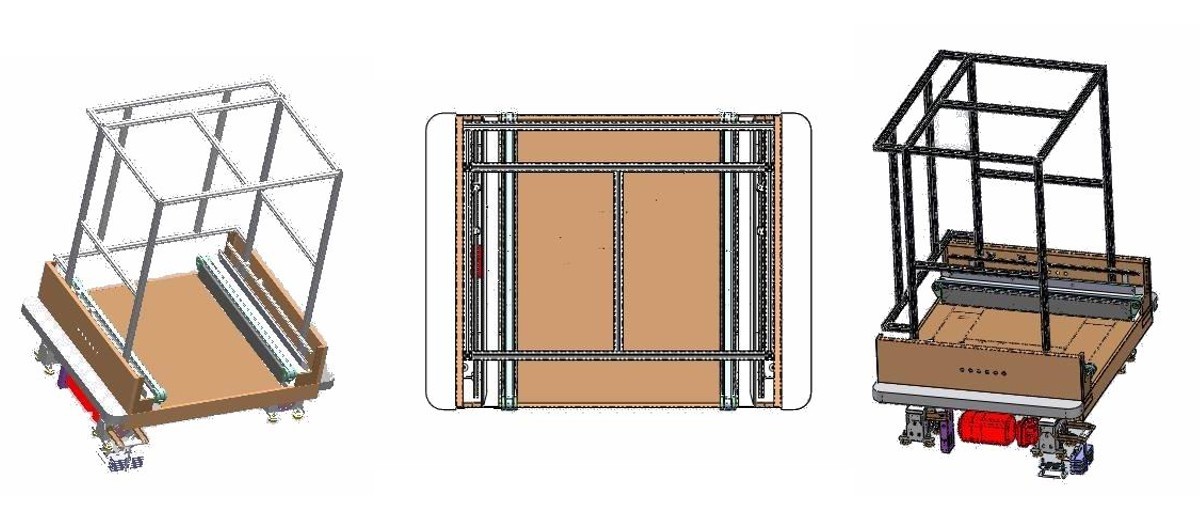

Equipment Image
Equipment Parameters
| Parameter Name |
Parameter Name |
||
| Rated Load |
0~1000kg |
Power Supply Method |
Sliding Contact Line Power Supply |
| Travel Speed |
0~160m/min, Variable Frequency Speed Regulation |
Sensor |
Photoelectric Detection |
| Conveying Speed |
0~20m/min |
Control Method |
Manual, Single Machine, Online Automatic Control |
| Turning Speed |
20m/min |
Communication Method |
Wireless AP/Infrared Communication |
| Addressing Method |
Laser Addressing/Barcode Addressing |
Safety Device |
End Double Buffer |
Product Advantages and Features
Features
Small vehicle size, high speed, flexible scheduling, precise positioning
High Safety
A barcode reader is installed on the active drive wheel, and barcode identification is installed on the ring track. The vehicle will not miss steps at the bend, ensuring safe and reliable vehicle travel.
High Efficiency

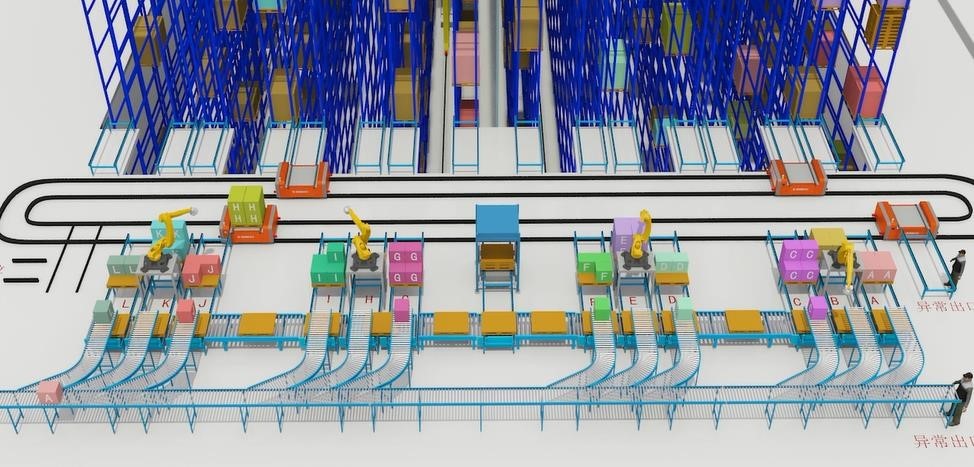

The shuttle car is a ring shuttle car, with multiple platforms for operation, which improves the utilization rate of warehousing equipment and increases efficiency.
When one shuttle car malfunctions, other shuttle cars can complete the task without affecting normal operation.
Advantages Compared to Other Similar Products
Integrates computer scheduling management system, programmable logic controller (PLC) technology, variable frequency servo drive, and sliding contact line power supply technology.
High speed, smooth acceleration and deceleration, flexible scheduling, precise and reliable positioning, high efficiency in completing tasks, and strong adaptability.
At the same time, if combined with several logistics equipment independently developed by our company, the warehousing and logistics system can be made very simple and practical
