Multi-layer shuttle car
Multi-layer shuttle car

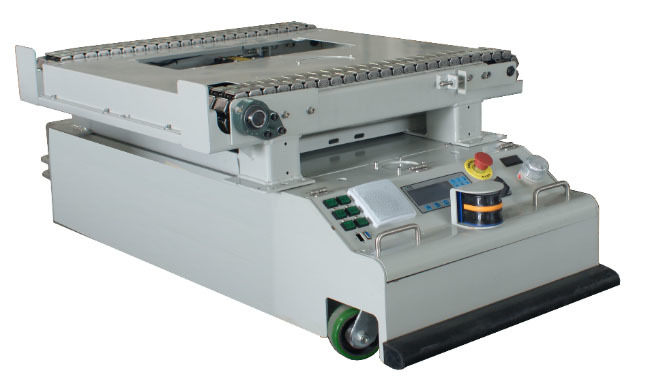

Equipment Image
Equipment Parameters
| Parameter Name |
Parameter Name |
||
| Rated Load |
35kg |
Power Supply Method |
Sliding Contact Line Power Supply |
| Running Speed |
4m/s |
Addressing Method |
Encoder/Barcode/RFID |
| Acceleration |
2m/s2 |
Operation Mode |
Manual/Single Machine Automatic/Networked Automatic |
| Fork Speed |
30~40m/min |
Communication Method |
Wireless AP/Infrared Communication |
| Positioning Accuracy |
Travel ±3mm |
|
Product Features
▲ The storage system is fast and scalable, suitable for totes or cartons weighing up to 35kg.
▲ With a double-layer lifting system, the system performance is excellent.
▲ Both the lifting system and the shuttle car are equipped with dual workstations for high performance.
▲ Two workstations are assigned to the lifting system and the shuttle car.
▲ Height: 6-15m, storage layers 8-36 layers
▲ Length: 20-100m,
▲ Optimized rack design can store cartons or totes.
▲ Double-cycle storage and retrieval improves efficiency.
▲ Each aisle is equipped with two lifts to improve efficiency.
▲ Scalable lifting performance.
▲ The shuttle car is easy to maintain and ergonomically designed.
▲ Short payback period and strong profitability.
Product Advantages
The multi-layer shuttle car structure is very compact, reducing the floor space by 30%-50% compared to general and traditional solutions.
The cubic multi-layer shuttle car uses a single/double-deep layout, which can be used in high-density storage systems, greatly increasing the required storage space.
In systems with the same spatial layout, the multi-layer shuttle car system has 5-10 times the in/out handling capacity of traditional warehouse systems.
The multi-layer shuttle car uses low-voltage power supply and saves 10% energy compared to traditional stackers under the same cargo handling capacity.
