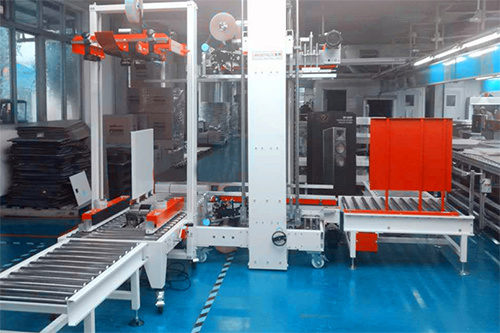

Audio packaging assembly line
Features
1. Automatic speaker assembly: Automatically assembles various components onto the bottom shell, automatically locking the speaker, automatically installing the mounting bracket, automatically tightening the subwoofer, automatically installing the upper shell, automatically locking the panel, automatically installing the handle, automatically installing the pull handle, automatically installing the casters, etc. Adaptable to speakers of different sizes.
锁面板、自动装把手、自动装拉手、自动装滑轮等实现自动。可适应不同大小音响。
2. Uses a special locking module; it can also lock in deep holes (150mm); XYZ three-axis plus high-torque R-axis for fast and accurate grasping and tightening of the subwoofer.
3. The positioning fixture uses an up-and-down reflux method, driven by rollers on both sides; the workstation fixture positioning uses cone pin lifting and precise alignment; the fixture size is universal.
Technical Parameters
◆ Suitable Product Range: Portable speaker series
◆ Main Functional Range: Assembly, screw locking, tightening
◆ Control Type: PLC control + touch screen
◆ Power Supply: AC220V 50HZ
◆ Rated Power: 15 KW
◆ Air Source: ≥0.5MPa
◆ Production Efficiency: ≥200PCS/H
