Hongbao
Automatic unpacking machine

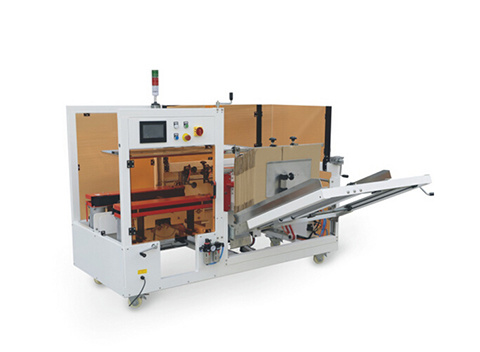

Automatic Case Opener
| Equipment External Dimensions: |
L2050㎜×W1950㎜×H1500㎜ |
|---|---|
| Equipment Compatibility: |
Used for the outer packaging of various types of products |
| Equipment Efficiency: |
8-10 boxes/minute (depending on the size of the carton) |
| Single Machine Production Efficiency: |
≥95% |
| Equipment Maintenance: |
Simple equipment maintenance, quick spare parts replacement |
| Opening: |
Three-dimensional forming |
1. Power supply: 220V 50Hz 400W
2. Air pressure: 6㎏/cm2
3. Air consumption 200L/min
4. Machine external dimensions: L2050㎜×W1950㎜×H1500㎜
5. Machine weight: 400㎏
6. Carton specifications: L280-550mm W180-400mm 5107. Tape width: 4.8-7.2㎝
7. Forming speed: 8-10 boxes/minute (depending on the size of the carton)
8. Single machine production efficiency: ≥95%
9. Opening method: Vertical forming
10. The overall equipment design and manufacturing meet the requirements of the production line process and layout. The appearance is beautiful and generous, the manufacturing process is good, it saves electricity and water, and the operation, adjustment and maintenance are simple and quick. There are functions for alarming when there is no tape or cardboard box.
Storage bin mechanism: Approximately 50 unformed cartons can be placed at one time (depending on the thickness of the carton), and can be replenished at any time
11. Electrical configuration:
PLC control: German "Siemens"
Relay/Contactor: French "Schneider"
Push button switch: Siemens APT
Human-machine interface: Chinese "Inovance"
Pneumatic components: Taiwan "AirTAC"
Vacuum generator: Japan SMC
12. Workflow: Suction box—Open box—Fold front and rear covers—Fold left and right covers—Seal bottom
13. Environmental conditions: Humidity ≤98%, temperature 0-40℃
