Automatic film application testing equipment
Automatic Film Applying Testing Equipment

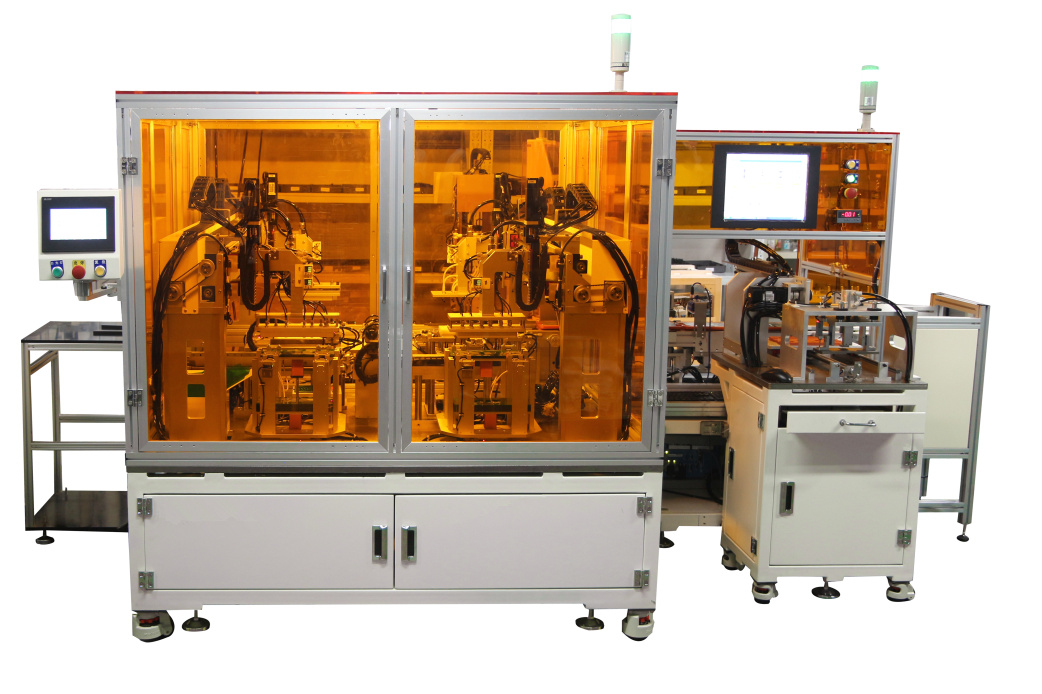

Equipment Image
Equipment Parameters
| Parameter Name |
Parameter Name |
||
| Equipment External Dimensions |
Non-standard |
Functional Summary |
Functions include applying film to the front and back of the product, pressure holding, and testing. |
| Equipment Compatibility |
Multiple models can be used |
Equipment Maintenance |
On-site training, on-site maintenance, and after-sales technical support are provided. |
| Equipment Efficiency |
7.2 s/pcs |
Application Range |
Suitable for automatic film application and testing in the 3C industry. |
Advantage One
Modular flexible line design, workstations can be added or reduced according to the product process.
The equipment adopts an internal loop layout, occupying a small area and having a high unit area output ratio.
The equipment has few tooling fixtures, and the line change time is short.
Advantage Two
The equipment applies film to individual sheet-like protective films, using a dual-position feeding system; two positions can hold approximately 1000 protective films.
The equipment uses high-precision modules, ensuring high stability in feeding and film application to products.
Advantage Three
All moving parts of the equipment use high-precision actuators, resulting in high equipment stability and a yield rate of up to 99.5%.
The equipment uses a conveyor belt automatic lifting and lowering mechanism for product classification in the later stage.
Advantage Four
Multiple model options, fast model change and line change.
Real-time monitoring of the equipment process and real-time control of the motion state.
The equipment automatically generates and saves production reports, facilitating data statistics and management.
