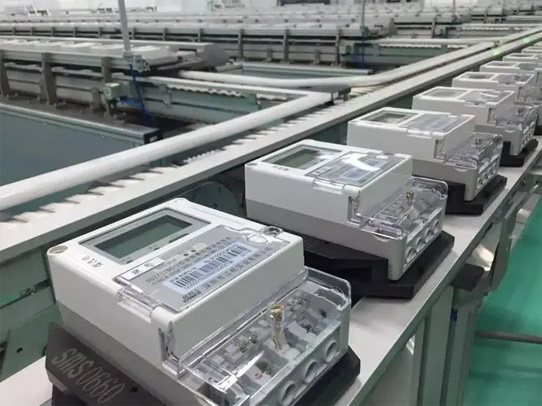

Non-standard assembly line for electricity and gas meters
Project Introduction
The vibrating bowl feeds and aligns the parts linearly to the pushing mechanism. The pushing mechanism sends the connecting pieces to the product's locking position. The screw hopper aligns the screws to the dispensing mechanism, which then distributes the screws to the feeding tubes. The screws are automatically fed to the screw bit, which drives them down to fasten the connecting pieces to the product. Two X-axis fixtures on either side alternate in the fastening process, significantly improving efficiency and reducing labor intensity.
Assembly Process
Feeding - Automatic Connecting Piece Feeding - Positioning - Screw Fastening - Detection - Unloading
Inspection Items
Loose fastening, floating fastening, stripped thread detection, full load, missing parts, missing installation, detection
Feeding Method
Single-axis bilateral feeding / Vibrating bowl feeding
Equipment Features
1. Compatibility with multiple products in the same series by replacing fixtures, making product changeover easier.
2. Adapts to diversified production; individual or multiple functions can be disabled via touchscreen operation.
3. The machine is equipped with loose fastening/floating fastening/stripped thread/missing installation/detection and other fault detection and alarms.
4. Personalized design and debugging by professional engineers, with dedicated after-sales service.
5. Manual loading and unloading of the housing; the machine automatically moves the fixture for positioning, and automatically unloads.
