Welding workstation for bed frames, tables, and chairs
Project Advantages
1. This welding unit features simple configuration and flexible layout. The layout can be adjusted according to the actual situation to effectively avoid interference from fixtures. The dual-station configuration, along with the turning and positioning mechanism and fixtures, ensures stable and high-quality welding, guaranteeing high-quality welding results;
2. Suitable for mass production of products and welding of workpieces with multiple weld seams and non-concentrated positions. Through the turning of the positioning mechanism and the changes in the robot's own gun posture, the accessibility and status of the welding gun can be well guaranteed whether it is a straight line, arc or other complex weld seams;
3. The dual-station layout effectively prevents the robot's idle time during workpiece removal, improving robot utilization efficiency and ultimately increasing production efficiency;
4. Flexible configuration allows for the selection of appropriate configurations based on product needs, such as robot system brand and welding power supply brand;
5. Shortens the preparation cycle for product model changes (only requires modification of software and necessary fixtures, etc.), reducing equipment investment.
Welding Workstation

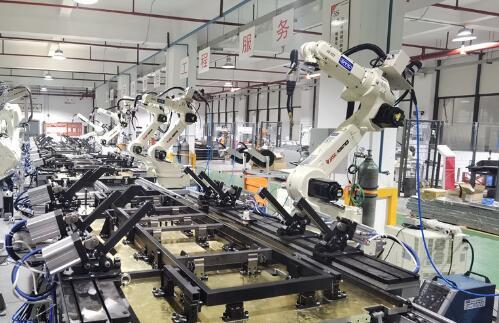

The bed frame welding workstation includes: FD-V6L long-arm welding robot (1 set), robot mounting base (1 set), single-axis pneumatic positioner (2 sets), welding fixtures (3 sets, designed and manufactured for customer workpieces), robot control system (1 set), robot teach pendant (1 set), welding power supply (1 set), dedicated robot welding gun (1 set), external control box (2 sets).

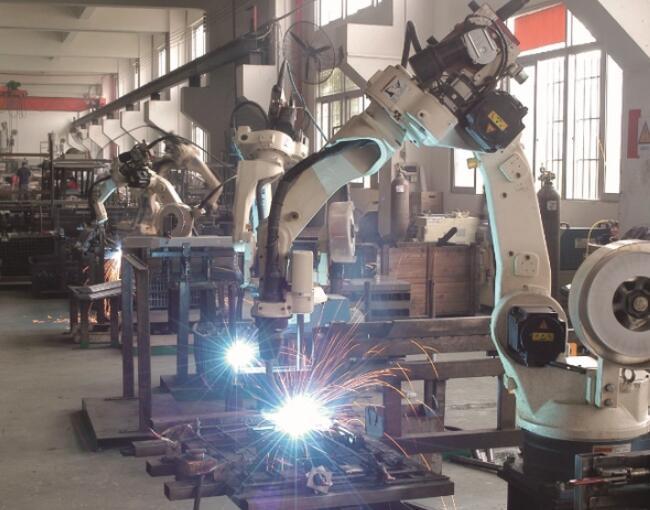

The bed leg welding workstation includes: FD-V6 short-arm welding robot (1 set), robot mounting base (1 set), bed leg welding fixtures (3 sets, designed and manufactured for customer workpieces), robot control system (1 set), robot teach pendant (1 set), welding power supply (1 set), dedicated robot welding gun (1 set), external control box (3 sets).
