Motor automated assembly robot
Project Advantages

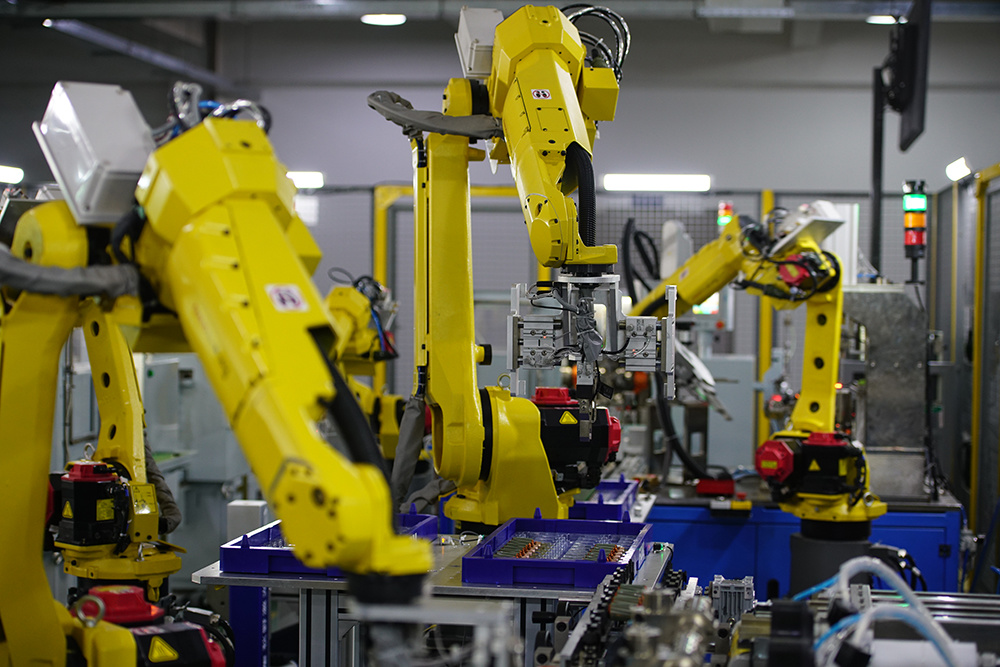

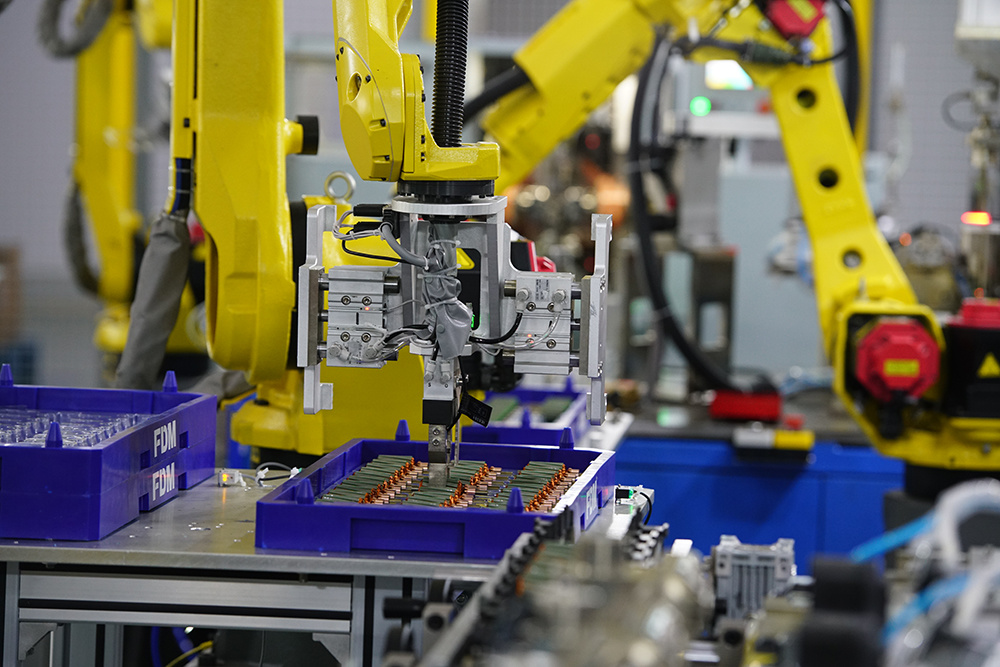

Automated assembly robots play a crucial role in this production line system. It consists of a motor component loading and unloading platform, a rotor cap pressing device, a rotor shaft polishing device, a front cover bearing pressing device, a housing bearing pressing device, a housing magnet charging and oil injection device, a motor assembly insertion device, a cover plate riveting fixture, a motor performance testing device, motor no-load run-in, a gear pressing worm device, motor rotor shaft end polishing and runout detection device, Hall test fixture, automatic motor barcode labeling device, noise detection system, production line control and display system, and 9 handling robots.
The entire production line can realize automatic rotor cap pressing, automatic motor rotor bearing installation, automatic bearing polishing, automatic housing magnet charging, oil injection and detection, and testing of motor-related parameters and performance. The production cycle of the entire automated motor production line is 11 seconds, which can replace more than 10 manual workers per shift. At the same time, a data tracing and viewing system is introduced into the production process, which can conveniently view production data in real time, understand production parameters, ensure motor production quality, and improve motor production quality by more than 5%.
